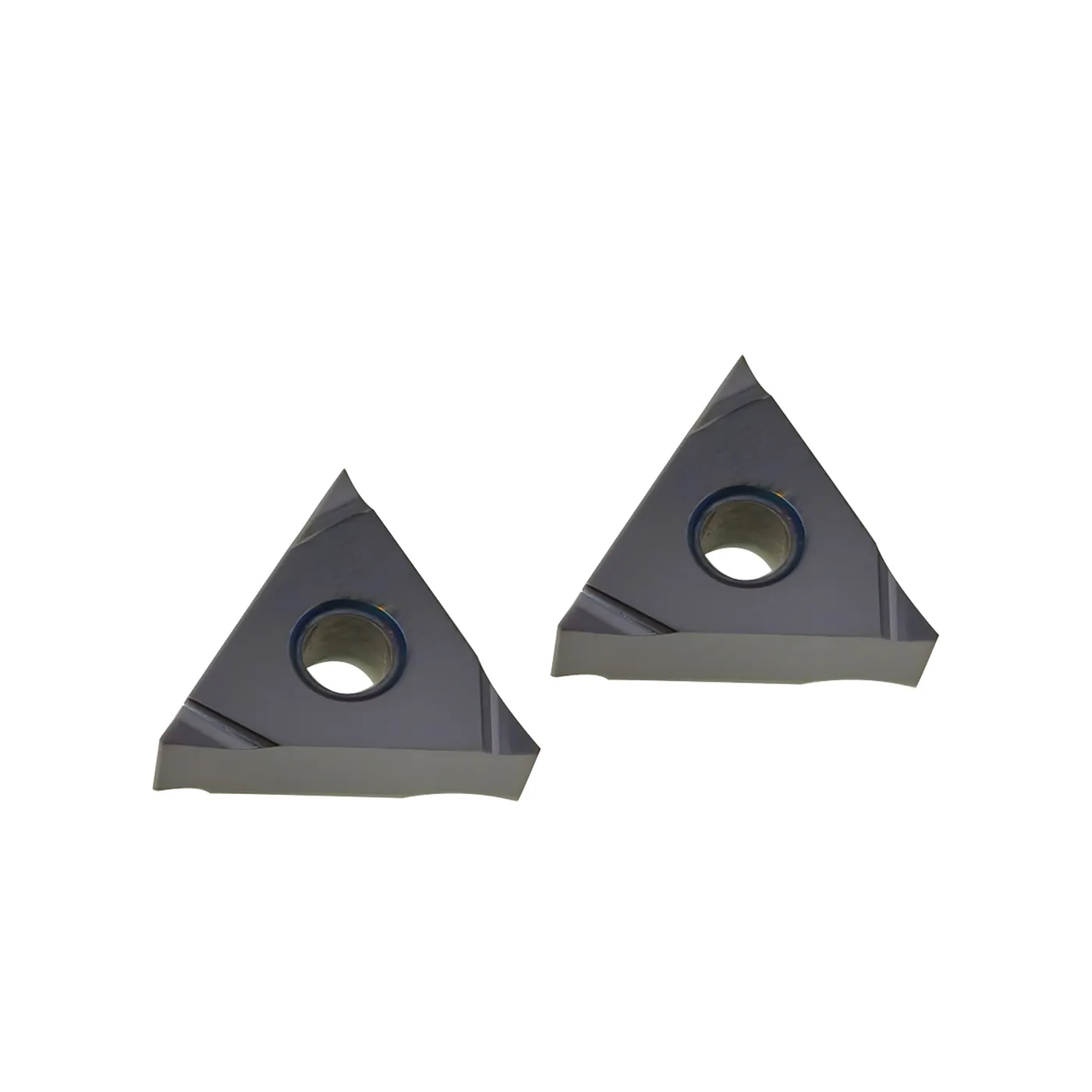

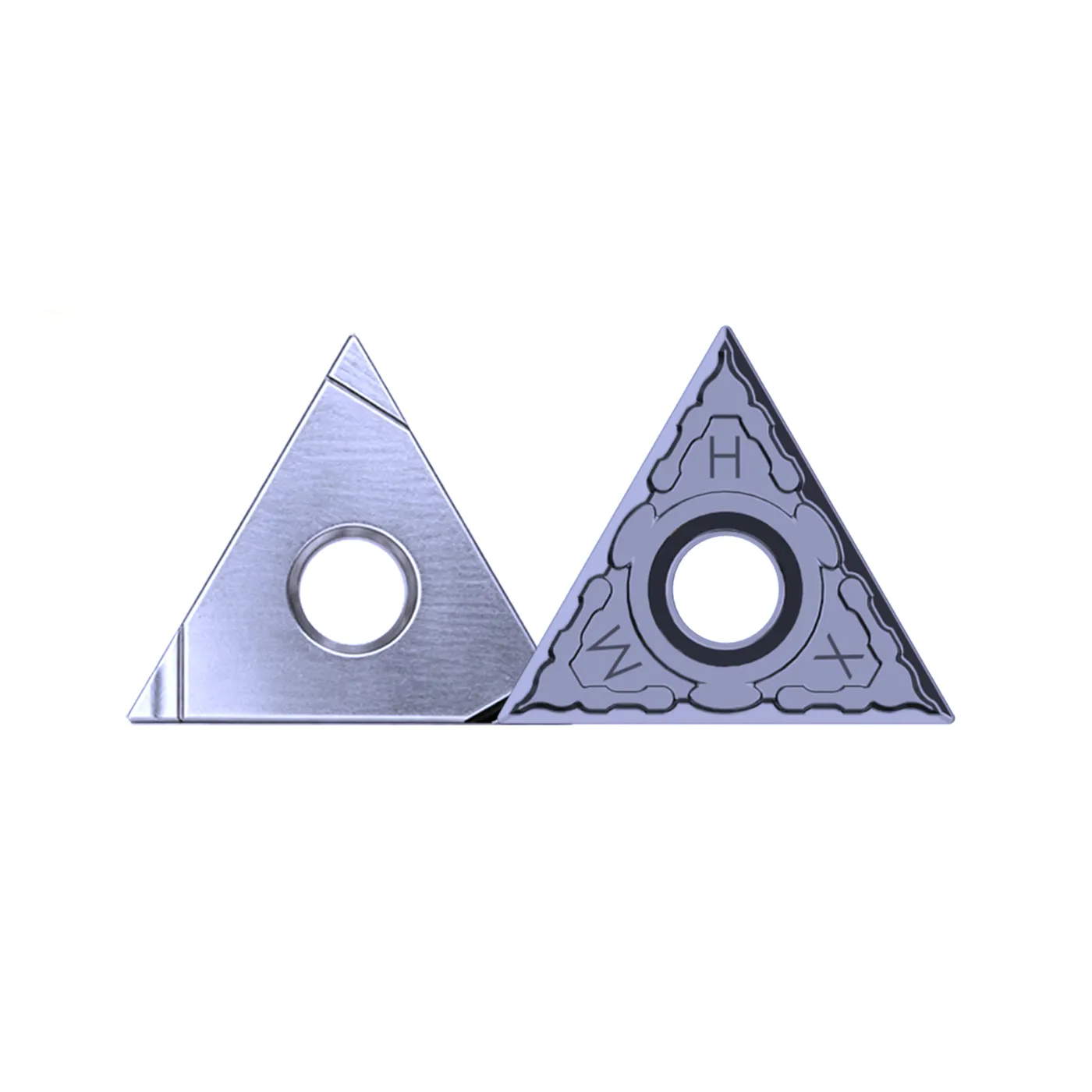

60° T-Shape Precision Ground Insert is a high-rigidity full-ground carbide turning tool independently developed and produced by Shenzhen Xinminghui Diamond Tools Co., Ltd. Featuring a standard 60-degree T-shaped geometric structure, this insert is professionally optimized for 60° profiling, thread turning, angular finishing and high-precision contour machining, perfectly adapting to machining scenarios requiring standard 60° angle dimensional accuracy and ultra-smooth surface finish.
Different from conventional pressed inserts, the entire 60° T-Shape insert undergoes multi-pass full precision grinding treatment. It achieves ultra-high edge flatness, straightness and dimensional consistency, with tighter tolerances than ordinary molded inserts. The unique 60° T-type rigid structure enhances tool body stability, effectively resisting cutting vibration and tool deflection during angular turning and profiling. Made of high-purity carbide substrate with stable mechanical properties, it maintains consistent high-precision cutting performance in long-term batch production.
As a key product of the precision ground carbide insert series, this 60° T-type insert covers universal precision machining of various metal materials, providing stable, efficient and high-precision tooling solutions for global CNC processing manufacturers.

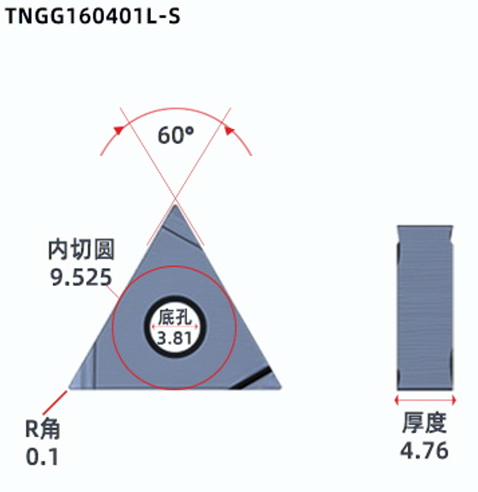

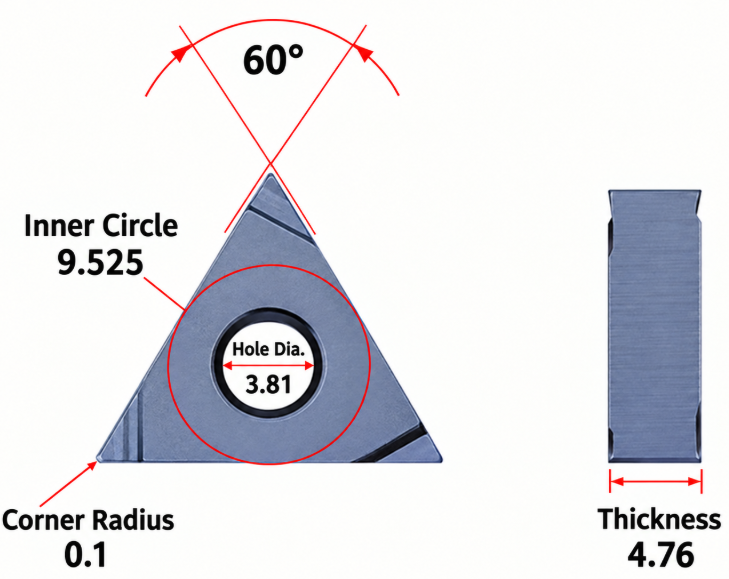

Standard 60° T-Type Rigid Geometry
Adopts industry-standard 60-degree T-shaped structural design, integrating excellent tool rigidity and cutting accessibility. It perfectly matches standard 60° thread profiles, angular contours and inclined surface finishing processes, solving the angle deviation problem of ordinary inserts in standard 60° precision machining.
Full-Body Precision Ground Structure
The entire insert including cutting edge, side edges and bottom surface is finely precision ground with ultra-low tolerance. The burr-free sharp edge ensures zero-gap fitting with standard tool holders, realizing ultra-stable clamping and high-precision positioning during high-speed CNC machining.
Precise 60° Angle Machining Performance
Optimized 60° geometric angle design ensures accurate angle replication on workpieces. It delivers excellent consistency for mass production of threaded parts, angular workpieces and special-shaped contours, effectively avoiding angle errors and improving workpiece assembly accuracy.
Superior Vibration Resistance & Stability
The thickened rigid T-type tool body structure enhances impact resistance and rigidity, suppressing cutting chatter and tool deflection during continuous fine turning. It ensures smooth cutting and uniform workpiece surface texture for high-standard finishing operations.
High Wear Resistance & Long Service Life
Constructed with high-density high-performance tungsten steel carbide material, featuring outstanding hardness, high-temperature resistance and abrasion resistance. It maintains stable cutting performance in long-cycle continuous machining, reducing tool replacement frequency and production downtime.
Wide Adaptability & Customizable Design

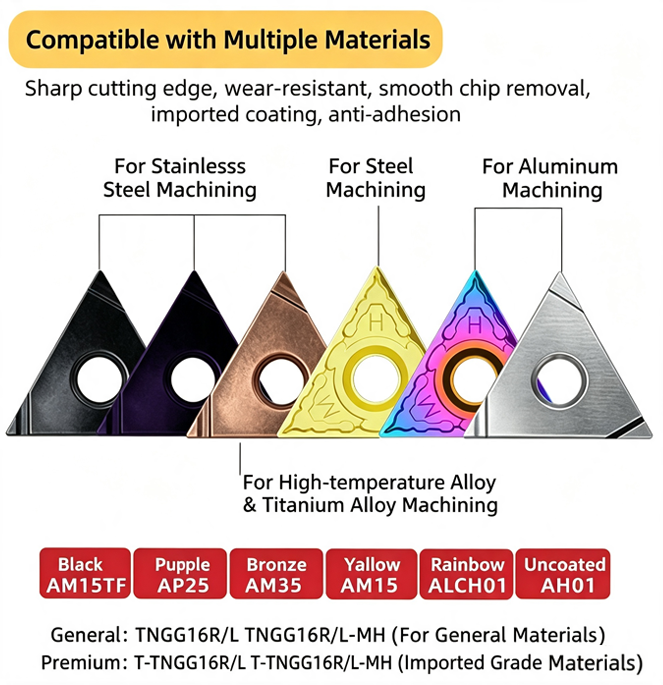

Compatible with multiple customized carbide grades and professional coatings for different metal materials. It supports personalized customization of edge treatment, dimensional tolerance, special chip-breaking grooves and special angles to meet diverse high-precision machining requirements.

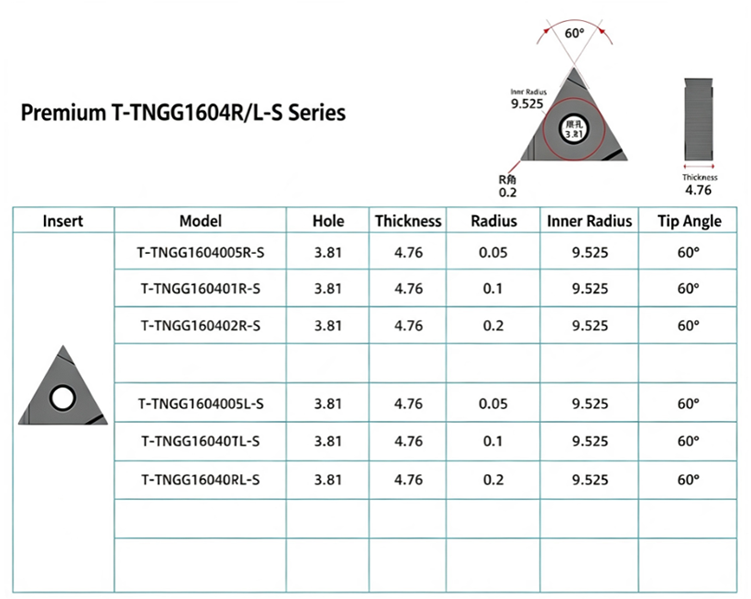

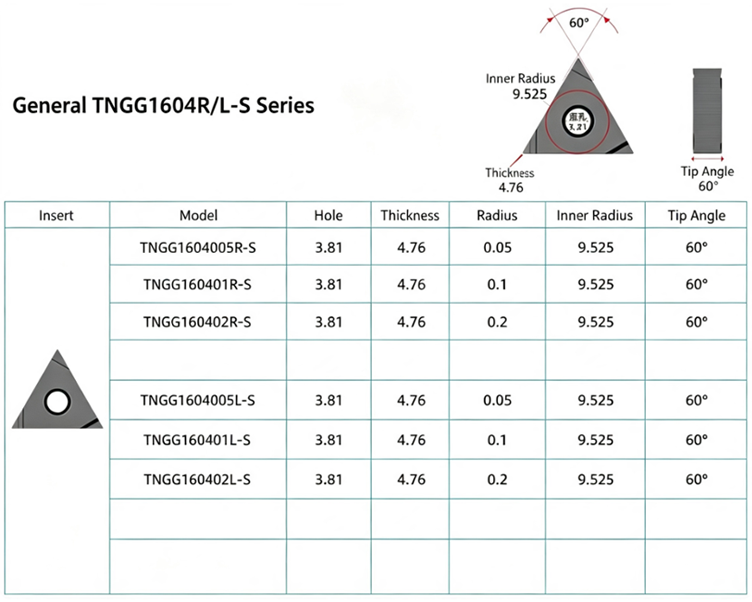

| Item | Specification |
Name | Swiss Type Precision Ground Carbide Turning Inserts |
Model | 60° T Type Series |
Material | Tungsten Carbide |
Customization | Non-standard Customization Available |
Applicable Materials | Stainless Steel / Aluminum Parts / Steel / Superalloy / Titanium Alloy |
Features | Sharp & Wear-resistant, High Hardness, Superior Surface Finish, Anti Built-up Edge |
Packing | 10 pcs per box |
Price | Price per piece |

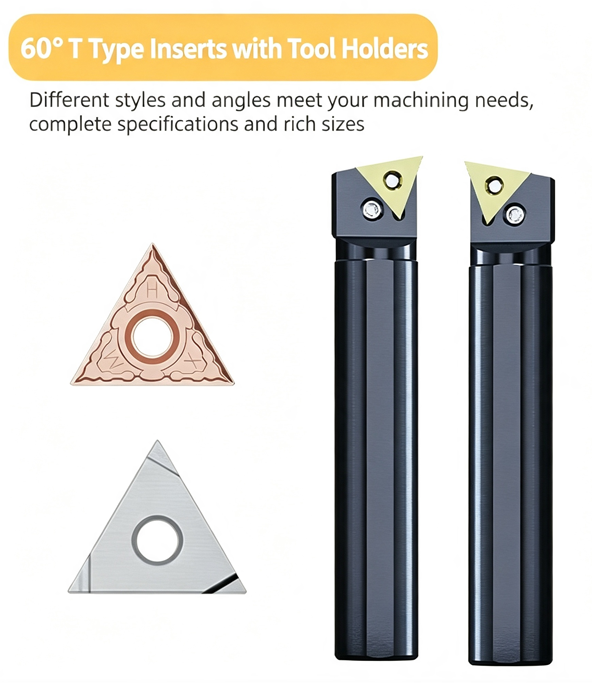

60° T-Shape precision inserts are fully compatible with standard T-type tool holders, suitable for mainstream precision CNC lathes, walking machines and automatic turning equipment on the market. The standardized overall size and clamping structure support universal quick installation, achieving stable and precise clamping, perfectly matching 60° thread turning, angular profiling and precision finishing processes.
Accurate 60° Angle Replication
The professionally ground standard 60° angle ensures ultra-high angle accuracy of processed workpieces, completely avoiding angle deviation caused by tool wear or structural instability. It guarantees consistent assembly precision of threaded and angular workpieces in batch production.
High Rigidity & Anti-Vibration Cutting
The optimized T-type thickened tool body greatly improves structural rigidity, effectively suppressing cutting vibration and tool jumping during heavy-duty fine turning and profiling. The cutting process is stable and smooth, without chatter marks, ensuring excellent workpiece surface finish.
Stable Batch Machining Consistency
Full precision grinding process unifies the dimensional accuracy, edge sharpness and geometric angle of each insert. No performance fluctuation occurs in long-term continuous batch production, effectively improving product yield and production stability.
Extended Tool Service Life & Cost Saving
High-performance carbide substrate and fine grinding technology endow the insert with excellent wear resistance and impact resistance. It reduces tool replacement frequency and production shutdown time, effectively lowering overall customer machining and tooling costs.
This 60° T-type precision insert is specially designed for standard 60° high-precision machining scenarios, widely used in various high-standard CNC finishing and profiling operations:
Standard 60° thread turning and forming machining
Precision 60° angular surface profiling finishing
Inner and outer circle high-precision fine turning
Special-shaped contour and inclined surface precision machining
High-tolerance precision batch component production
Automotive, electronic and mechanical precision parts processing
Shenzhen Xinminghui Diamond Tools Co., Ltd. is a professional manufacturer specialized in R&D and mass production of precision ground carbide cutting tools. We own advanced CNC precision grinding equipment, complete precision detection instruments and standardized production management systems to ensure every precision insert meets international high-precision manufacturing standards.
We focus on the core pain points of precision finishing and standard-angle machining, independently developing a full range of precision ground inserts including T-type, D-type, double-hole positioning and grooving series. Abandoning ordinary pressed inserts with low precision and poor stability, our full-ground products help customers solve problems of poor finishing effect, large angle error and short tool life. We can provide standard products and customized tooling solutions according to customer equipment parameters and actual processing requirements.
We provide full professional customized services for 60° T-Shape precision ground inserts to meet personalized high-precision machining demands:
Custom insert overall dimensions and precision tolerance grades
Custom edge rounding and strengthening treatment for different processing materials
Custom professional anti-stick, wear-resistant and high-temperature resistant coatings
Custom special chip-breaking groove types for smooth chip removal
Custom carbide grades for high-hardness and high-temperature workpiece processing
Support drawing customization, sample copying and OEM customized production
1. What is a 60° T-Shape Precision Ground Insert used for?
60° T-Shape precision ground inserts are mainly used for standard 60° thread turning, angular surface profiling and high-precision fine turning, ideal for high-tolerance batch machining requiring accurate 60° angle and smooth surface finish.
2. What are the advantages of 60° T-type insert?
The 60° T-type insert features high structural rigidity, accurate standard angle and strong vibration resistance. Compared with ordinary inserts, it has higher angle replication accuracy and more stable cutting performance, especially suitable for standard threaded and angular precision parts processing.
3. What materials can the 60° T-Shape insert process?
Matched with different carbide grades and professional coatings, it can process stainless steel, carbon steel, alloy steel, aluminum alloy, copper alloy, titanium alloy and other precision metal materials, covering most precision finishing scenarios.
4. Can the 60° T-Shape insert be customized?
Yes. We support full-range customization of insert size, geometric tolerance, edge treatment, groove type, coating and substrate material. Customers can provide processing requirements, drawings or samples for exclusive precision tooling solutions.
5. Is the 60° T-type insert suitable for mass production?
Absolutely. The full precision grinding process ensures consistent dimensional accuracy and cutting performance of each insert. With stable cutting, low vibration and long service life, it is fully applicable to high-precision and high-stability batch mass production.
