AK-R-L Double-Hole with Locating Groove Series belongs to high-grade precision ground carbide insert series, specially developed for high-precision CNC turning, grooving and parting machining scenarios that require ultra-high clamping repeatability and positioning accuracy. Different from conventional single-position inserts, this series adopts a unique double-hole + locating groove composite structure, which thoroughly solves the problems of insert offset, poor repeatability and unstable clamping during high-speed and batch machining.
All AK-R-L series inserts are fully precision ground with strict dimensional tolerance control. Adopting high-purity tungsten steel carbide raw materials, the products feature sharp cutting edge, uniform wear resistance and stable mechanical performance. The standardized double-hole positioning structure realizes foolproof installation, greatly improving the consistency of batch machining size and surface finish.
Shenzhen Xinminghui Diamond Tools Co., Ltd. independently develops and produces Precision Ground Carbide Inserts, providing standardized and customized precision tooling solutions for global CNC machining manufacturers.
Dual-Hole Precision Positioning Structure
The unique double-hole matching positioning groove design realizes dual positioning restriction, completely avoiding angular deviation and displacement of the insert during high-speed cutting. It ensures micron-level repeated positioning accuracy, which is far superior to ordinary single-hole inserts, and is very suitable for high-precision batch production.
Integrated Locating Groove Design
The reserved precision locating groove cooperates with the special tool holder to achieve tight fitting and zero-gap clamping. It effectively suppresses tool vibration during cutting, reduces tool jumping and machining chatter marks, and improves the flatness and smoothness of the workpiece surface.
Full Precision Ground Cutting Edge
Adopting multi-process precision grinding technology, the cutting edge is sharp and burr-free, with consistent edge strength. The optimized edge geometric angle reduces cutting resistance, lowers machining heat, and effectively improves the finish of grooving and turning workpieces.
High Wear Resistance & Long Service Life
Made of high-density high-performance carbide substrate, with excellent hardness and impact resistance. It maintains stable cutting performance in long-term continuous machining, reduces frequent tool replacement, and improves overall production efficiency.
High Compatibility & Foolproof Installation
Standard double-hole spacing and locating groove size, compatible with matching special CNC Tool Holders. The positioning structure is clear, the installation is fast and accurate, relying on mechanical positioning to completely eliminate human installation errors.
Support Customized Precision Machining
Support customized carbide grades, cutting edge angles, groove types, dimensional tolerances and special coating treatments according to customer machining materials and process requirements, to meet personalized precision machining needs.
| Item | Specification |
Name | Double Holes Locating Groove CNC Inserts |
Model | AK Series |
Material | Tungsten Carbide |
Chipbreaker Type | Type F / Type U / Type NB |
Applicable Materials | Stainless Steel / Aluminum Workpiece / Steel / Superalloy / Titanium Alloy |
Features | Sharp & Wear-resistant, High Hardness, Excellent Surface Finish, Anti Built-up Edge |
Packing | 10 pcs per box |
Price | Price per piece |

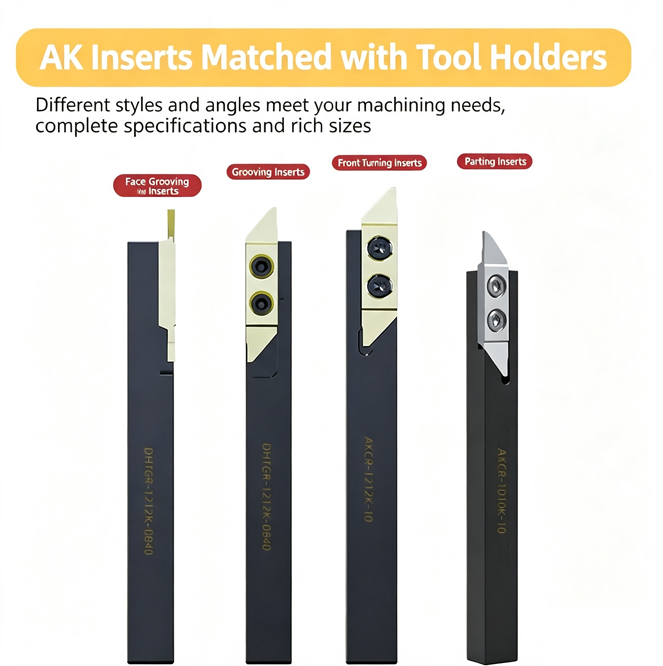

AK-R-L Double-Hole Locating Groove Inserts are matched with special supporting tool holders, suitable for precision CNC lathes, walking machines and automatic turning equipment. The dual positioning structure is exclusive to matching tool holders, realizing ultra-high-precision clamping and positioning, suitable for high-precision turning and grooving processes of various metal workpieces.
This series of inserts is mainly aimed at high-precision batch machining scenarios with strict requirements on dimensional consistency and surface finish, widely used in various precision CNC turning operations:
Precision internal and external grooving
High-precision workpiece parting and cutting
Fine turning of stainless steel and alloy parts
Batch precision component machining
Small tolerance precision mold parts processing
Aerospace and medical precision parts turning
Ultra-High Positioning Repeatability
The double-hole + locating groove dual positioning mode completely eliminates the shaking and offset of the insert during clamping, ensures consistent tool position for each tool change, and greatly improves the dimensional pass rate of batch workpieces.
Excellent Anti-Vibration Cutting Performance
The fully fitted positioning structure suppresses cutting vibration to the greatest extent, effectively eliminates workpiece chatter marks, and improves surface smoothness, meeting high-standard finish machining requirements.
Stable Batch Machining Quality
Full precision grinding process + standardized structural design ensures that the cutting performance and dimensional accuracy of each insert are consistent, avoiding quality fluctuations in mass production.
Reduced Production Cost
High wear resistance extends tool life, stable positioning reduces workpiece scrap rate, and fast positioning installation improves tool change efficiency, comprehensively reducing customer production and tooling costs.
Shenzhen Xinminghui Diamond Tools Co., Ltd. is a professional manufacturer focusing on the R&D and production of precision ground carbide cutting tools and CNC tooling accessories. We have advanced grinding equipment and complete quality inspection systems, and all precision inserts are strictly controlled in accordance with international precision standards.
We focus on actual machining pain points, and independently develop high-precision positioning inserts such as double-hole locating groove series to solve the problems of low precision and poor repeatability of ordinary inserts. We can provide standard products and personalized customized tooling solutions according to customer equipment parameters and processing requirements, helping global processing enterprises achieve efficient and high-precision production.
We provide full-range customized services for AK-R-L series double-hole positioning inserts to meet special processing needs:
Custom insert overall dimensions and hole spacing
Custom locating groove size and position
Custom carbide substrate grades for different processing materials
Custom special coating (anti-stick, wear-resistant, high-temperature resistant)
Custom cutting edge angle and groove type
Support OEM drawing processing and sample customization
1. What are AK-R-L Double-Hole Locating Groove Inserts used for?
AK-R-L series precision inserts are specially used for high-precision CNC turning, grooving and parting processes. The double-hole positioning structure is mainly aimed at batch processing scenarios that require ultra-high dimensional repeatability and surface finish.
2. What is the advantage of double-hole locating groove structure compared with ordinary inserts?
Ordinary single-hole inserts are prone to angular deviation and vibration during cutting, while AK-R-L dual positioning structure realizes zero-gap clamping, greatly improving positioning accuracy and cutting stability, and is more suitable for high-precision batch production.
3. What materials can AK-R-L carbide inserts process?
Matched with different carbide grades and coatings, it can process stainless steel, carbon steel, alloy steel, aluminum alloy, titanium alloy and high-temperature superalloy, covering most precision metal processing scenarios.
4. Can AK-R-L series inserts be customized?
Yes. We support full-size, structure, material and coating customization. Customers can provide processing requirements, drawings or samples for exclusive tooling solution customization.
5. Do I need a special tool holder for installation?
Yes. It needs to be matched with the special supporting double-hole positioning tool holder to exert the highest positioning accuracy and cutting stability.
