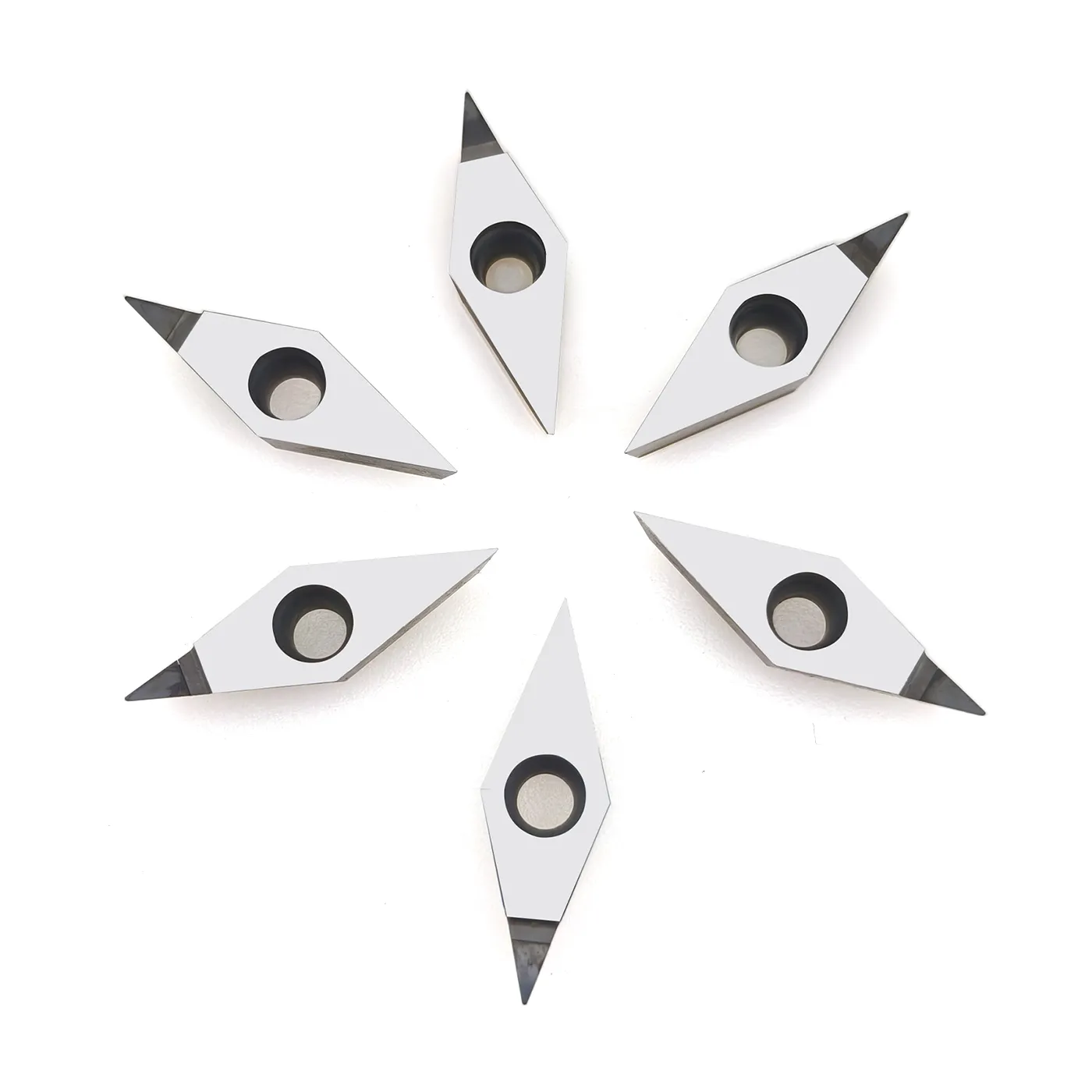

PCD35° V-Type Positive & Negative Inserts are advanced diamond cutting tools designed for precision machining applications requiring high cutting accuracy, excellent surface finish, and extended tool life.
Featuring a specialized V-type geometry with positive and negative cutting edge design, these PCD inserts provide stable cutting performance and improved machining efficiency during precision turning operations.
Manufactured with high-performance polycrystalline diamond (PCD) materials, these inserts are especially suitable for machining non-ferrous metals and materials that require superior surface quality, including aluminum alloys, copper alloys, and other precision components.
Shenzhen Xinminghui Diamond Tools Co., Ltd. provides professional PCD diamond tooling solutions for global machining industries, supporting both standard products and customized cutting tool requirements.
Advanced PCD Diamond Cutting Edge
PCD diamond material provides excellent hardness and wear resistance, allowing the insert to maintain stable cutting performance during continuous machining operations.
V-Type Geometry Design
The V-type cutting edge design helps improve machining accuracy and cutting stability, making it suitable for precision turning applications requiring consistent results.
Positive & Negative Cutting Structure
The combined positive and negative cutting design provides flexible machining performance and supports different processing requirements.
Excellent Surface Finish Capability
The sharp diamond cutting edge helps reduce machining marks and achieve high-quality surface finishes on precision components.
Long Tool Service Life
Compared with conventional cutting tools, PCD materials provide superior wear resistance and help reduce tool replacement frequency.
Item | Specification |
Brand | Xinminghui |
Product Name | PCD35° V-Type Positive & Negative Inserts |
Model | PCD35° V-Type |
Material | PCD (Polycrystalline Diamond) |
Customization | Non-standard customization available |
Suitable Materials | Stainless Steel / Aluminum / Steel / Superalloy & Titanium Alloy |
Features | Sharp & wear-resistant, high hardness, superior surface finish, anti built-up edge |
Package | 10 inserts per box |
Price | Price per insert |

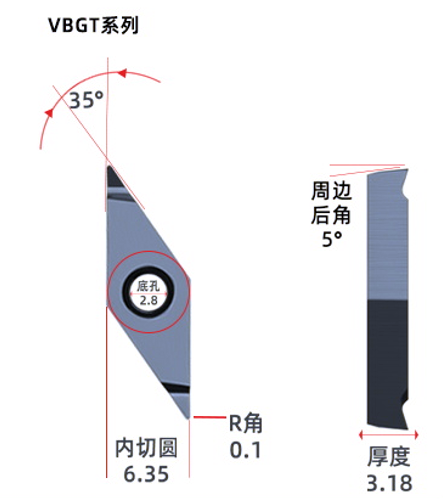

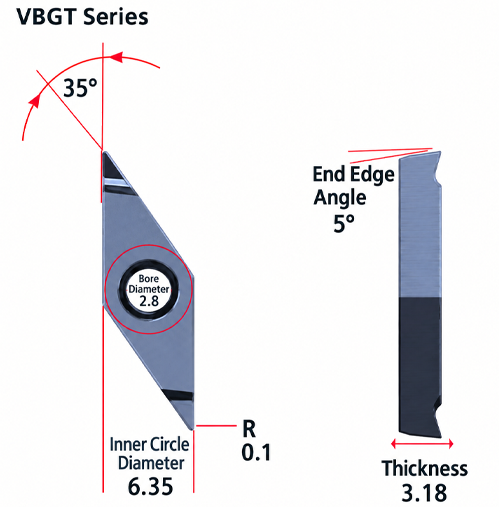

PCD35° V-Type Insert Dimensions
Suitable Materials
PCD35° V-Type Positive & Negative Inserts are designed for machining:
Aluminum Alloy
Copper Alloy
Brass
Graphite
Composite Materials
Non-Ferrous Metals
PCD35° V-Type Inserts are suitable for:
Precision Turning
External Turning
Finishing Operations
High-Speed Machining
Typical applications:
Automotive Aluminum Components
New Energy Battery Components
Electronic Precision Parts
CNC Precision Components
Superior Wear Resistance
PCD diamond materials provide outstanding hardness and durability for demanding machining conditions.
High Precision Machining
The optimized V-type geometry helps achieve accurate dimensions and consistent machining quality.
Excellent Surface Quality
Designed for applications requiring smooth finishes and reduced secondary processing.
Efficient Non-Ferrous Material Machining
Ideal for high-efficiency machining of aluminum and other non-ferrous materials.
Shenzhen Xinminghui Diamond Tools Co., Ltd. provides customized PCD tooling solutions according to customer machining requirements.
Customization options include:
Customized insert geometry
Different cutting edge designs
Special dimensions
Application-specific solutions
OEM production
Customers can provide drawings, samples, or machining conditions for professional recommendations.
Shenzhen Xinminghui Diamond Tools Co., Ltd. specializes in manufacturing precision diamond cutting tools and customized machining solutions.
With professional production capabilities, strict quality control, and advanced manufacturing technology, we provide reliable PCD tooling products for customers requiring high machining accuracy, stable performance, and extended tool life.
Our PCD diamond tools are designed to meet different machining requirements and help customers improve productivity while achieving consistent processing quality.
What are PCD35° V-Type Positive & Negative Inserts used for?
PCD35° V-Type Inserts are mainly used for precision turning applications requiring high accuracy and excellent surface finishes.
What materials can PCD Diamond Inserts machine?
PCD diamond inserts are commonly used for machining aluminum alloys, copper alloys, graphite, composites, and other non-ferrous materials.
What are the advantages of PCD Cutting Tools?
PCD cutting tools provide excellent wear resistance, long service life, high-speed machining capability, and superior surface finishing performance.
Can PCD inserts be customized?
Yes. Shenzhen Xinminghui Diamond Tools Co., Ltd. provides customized PCD inserts based on drawings, samples, and machining requirements.
What is the difference between PCD tools and carbide tools?
PCD tools provide higher hardness and wear resistance, making them especially suitable for high-precision machining of non-ferrous materials.
